25x53 East Facing House Plan (1325 Sq. Ft. / 147 Sq. Yards)

This 25x53 modern floor plan (Ground + First Floor) is optimized for natural ventilation (OTS shafts) and functional living. The Ground Floor offers spacious family living with a large car porch, while the First Floor is efficiently divided into two separate 2BHK rental units.

Detailed Plan Breakdown

Total Plot Size: 25' x 53' (1325 Sq. Ft. / 147.2 Sq. Yards)

Orientation: East Facing

Ventilation: Dedicated OTS (Open to Sky) ducts for natural light and airflow across all floors.

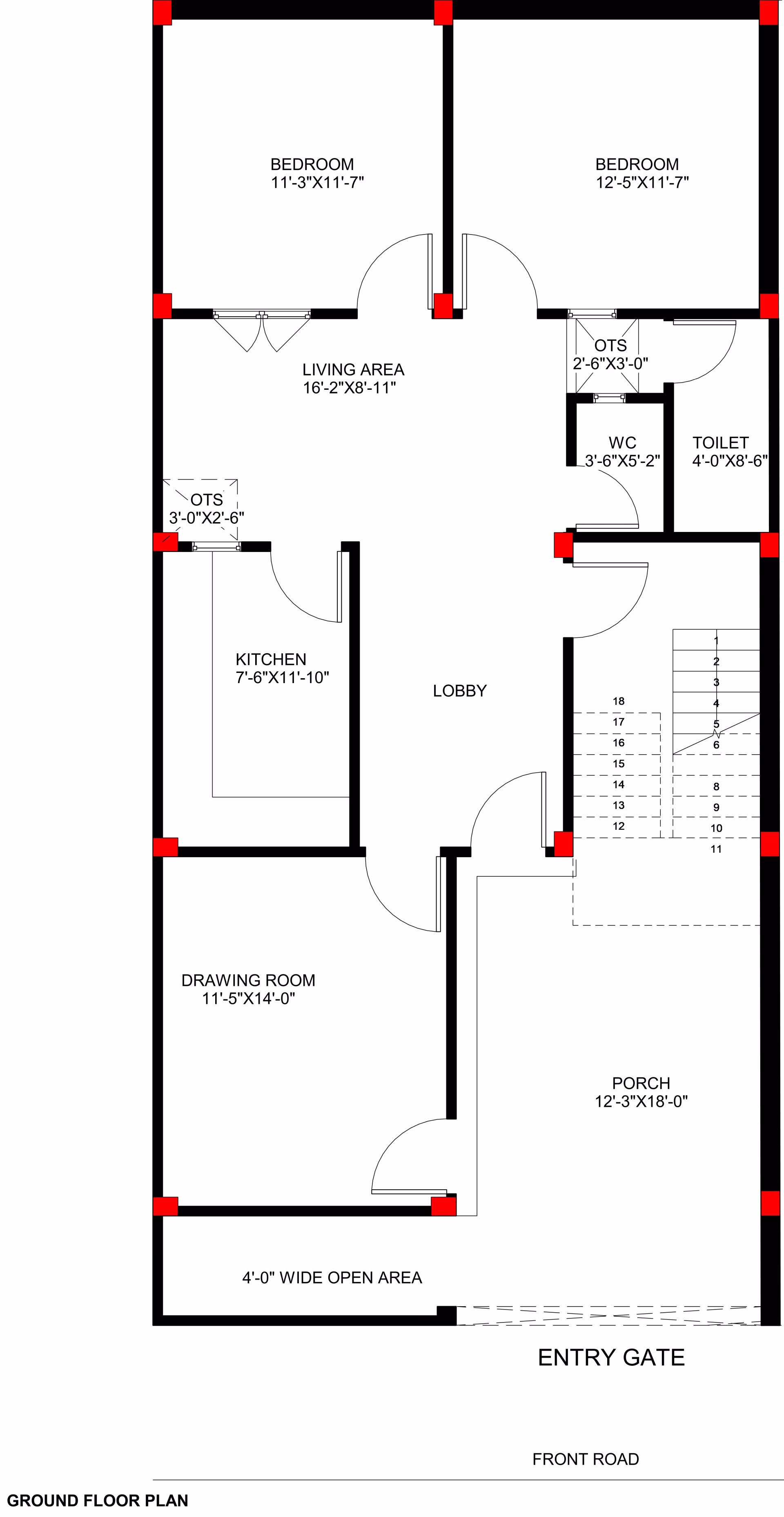

Ground Floor Plan:

Car Porch / Parking: 12'-3" x 18'-0" (Ample space for a large vehicle)

Front Open Area: 4'-0" Wide

Drawing Room: 11'-5" x 14'-0"

Spacious Living & Lobby Area: 16'-2" x 8'-11"

Modular Kitchen: 7'-6" x 11'-10" (Attached OTS: 3'-0" x 2'-6")

Master Bedroom: 12'-5" x 11'-7"

Bedroom 2: 11'-3" x 11'-7"

Toilet: 4'-0" x 8'-6" & Separate WC: 3'-6" x 5'-2"

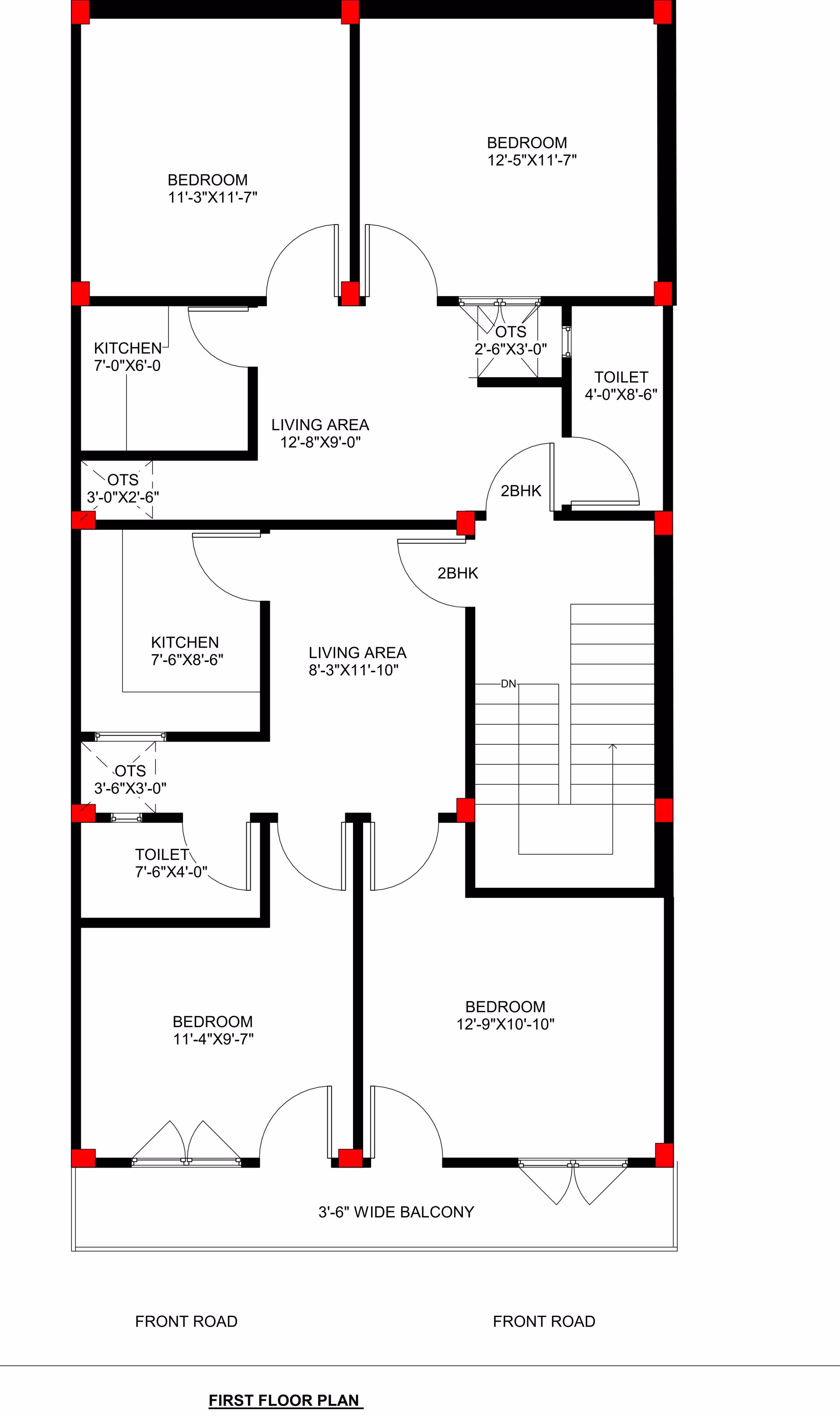

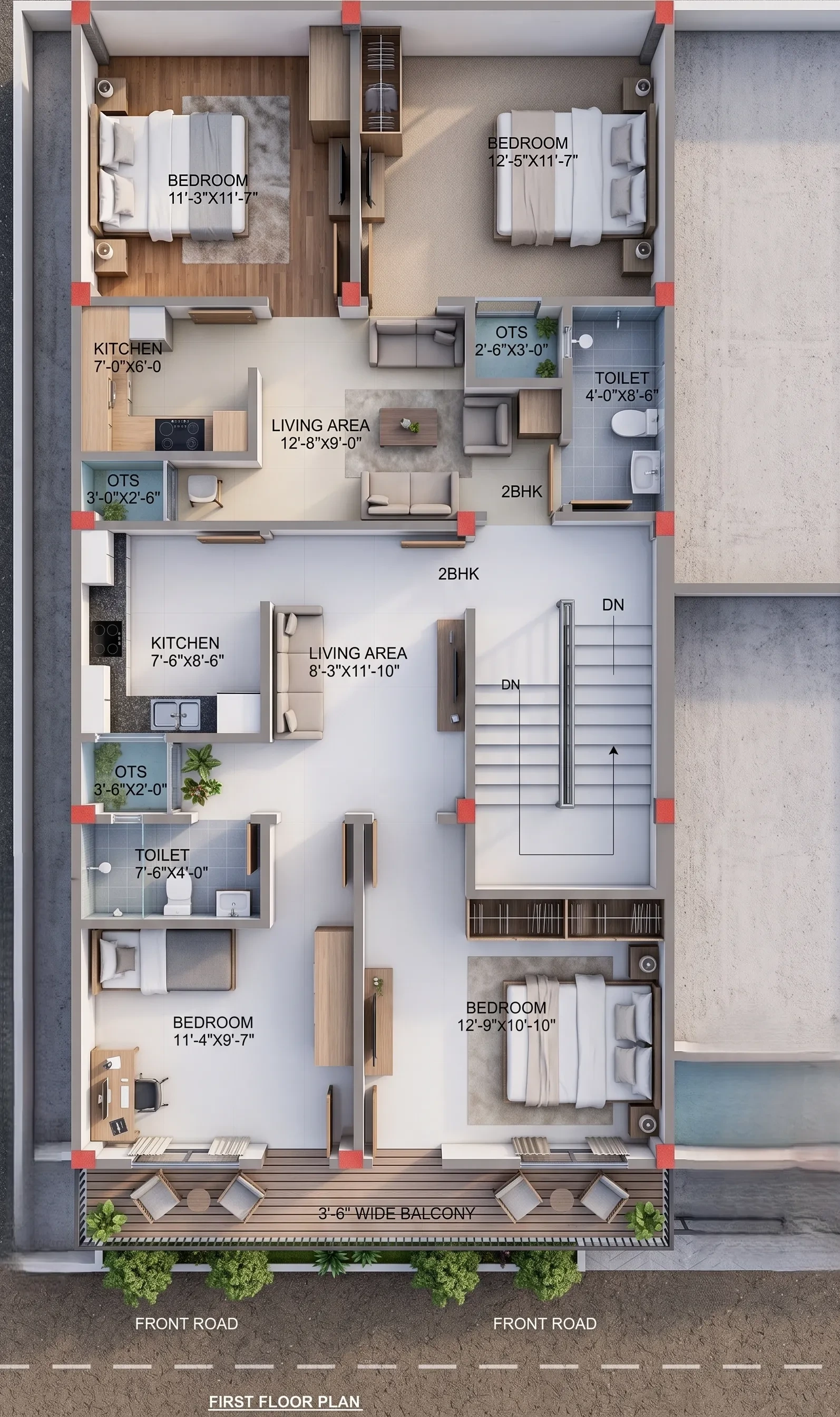

First Floor Plan (Dual 2BHK / Rental Unit Design):

Balcony: 3'-6" Wide Front Balcony

Front 2BHK Unit:

Bedroom 1: 12'-9" x 10'-10"

Bedroom 2: 11'-4" x 9'-7"

Living Area: 8'-3" x 11'-10"

Kitchen: 7'-6" x 8'-6"

Toilet: 7'-6" x 4'-0"

Rear 2BHK Unit:

Bedroom 1: 12'-5" x 11'-7"

Bedroom 2: 11'-3" x 11'-7"

Living Area: 12'-8" x 9'-0"

Kitchen: 7'-0" x 6'-0"

Toilet: 4'-0" x 8'-6"

Staircase: Independent central staircase providing separate access to both levels.
