## 22x50 East Facing House Plan with Car Parking – 3BHK G+1 Ghar Ka Naksha

Looking for a practical **22x50 East Facing House Plan with Car Parking**? This thoughtfully planned G+1 residential house design is suitable for families looking for a comfortable home on an approximately 1100 sq.ft plot.

The layout includes a spacious ground-floor car porch, drawing room, bedroom, kitchen, living area, store room, toilet, staircase and ventilation shafts. The first floor provides two bedrooms, a drawing room, kitchen, living area, store, toilet and front balconies.

The downloadable house plan package includes **Ground Floor Plan, First Floor Plan, Centerline Layout and Footing Details**, making it a useful reference for residential planning and construction coordination.

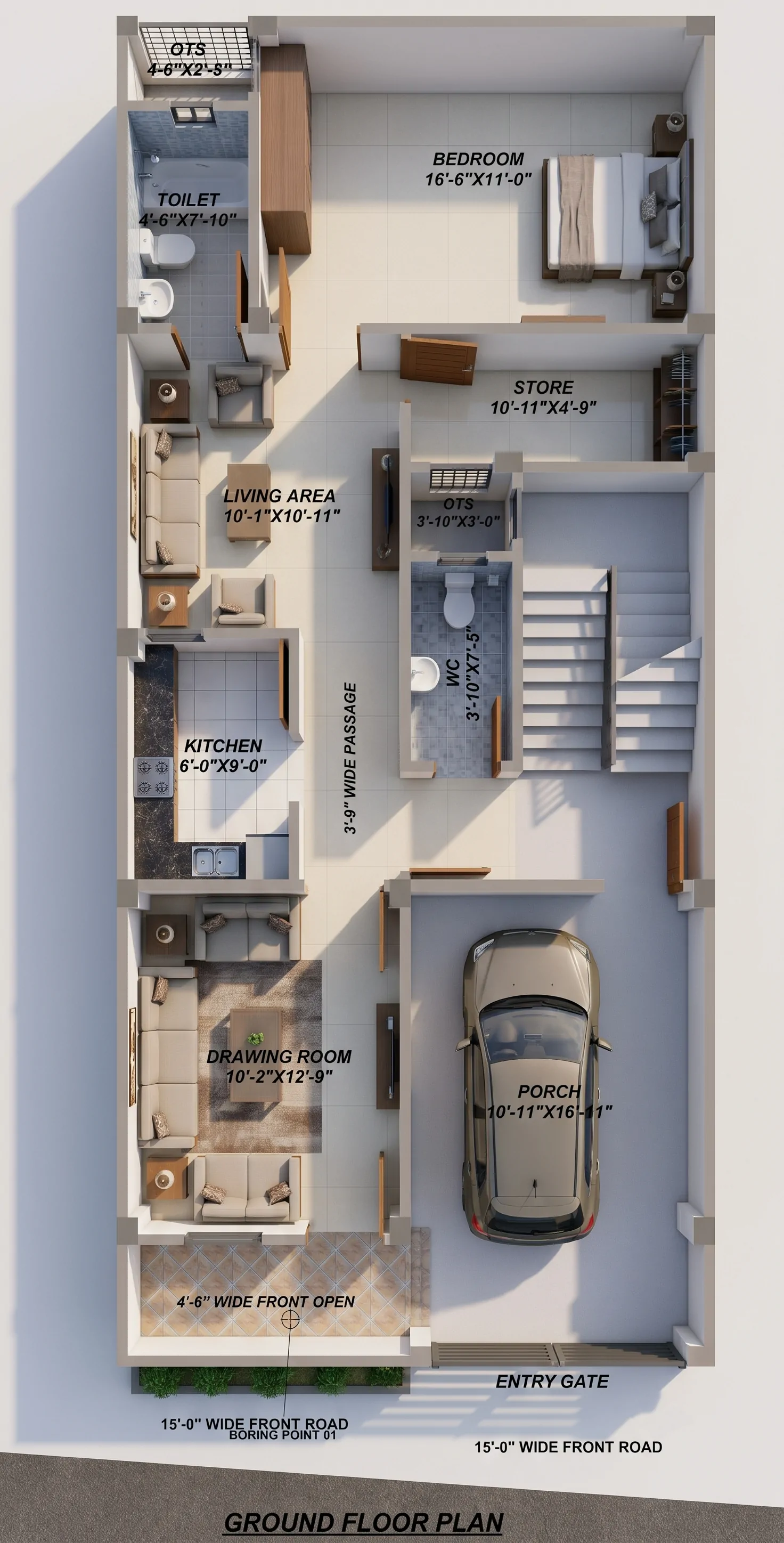

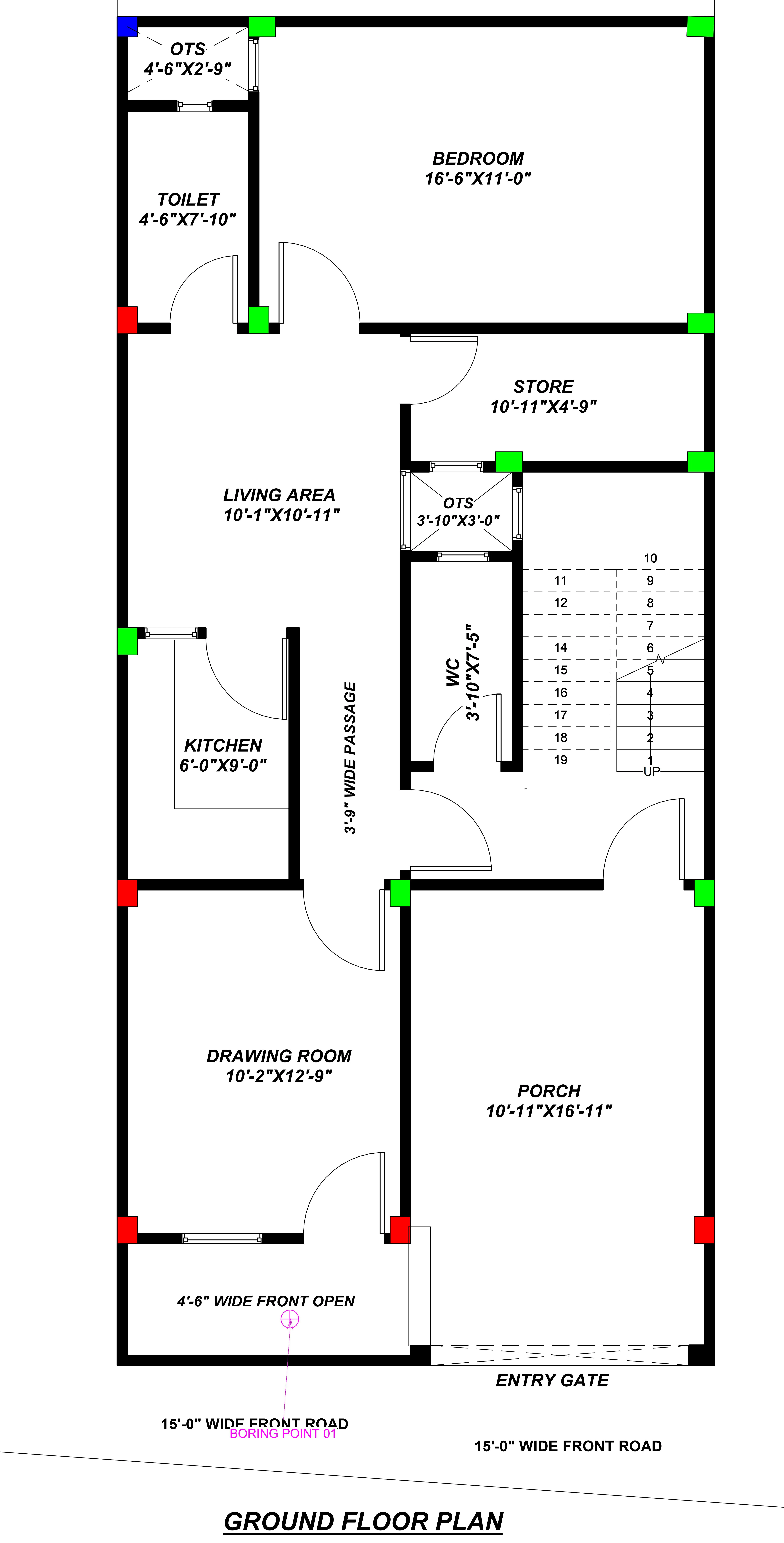

### Ground Floor Plan Details

The ground floor has been designed for convenient daily living, with a dedicated parking area and functional residential spaces.

- **Car Parking / Porch:** 10'-11" × 16'-11"
- **Drawing Room:** 10'-2" × 12'-9"
- **Bedroom:** 16'-6" × 11'-0"
- **Kitchen:** 6'-0" × 9'-0"
- **Living Area:** 10'-1" × 10'-11"
- **Store Room:** 10'-11" × 4'-9"
- **Toilet:** 4'-6" × 7'-10"
- **Additional WC:** 3'-10" × 7'-5"
- **Passage:** 3'-9" wide
- **Front Open Space:** 4'-6" wide
- **Ventilation Shafts (OTS):** 4'-6" × 2'-9" and 3'-10" × 3'-0"

The front portion accommodates a car porch and drawing room, while the rear section provides a bedroom and toilet. The living area connects the major spaces, with a staircase providing access to the upper floor.

### First Floor Plan Details

The first floor offers additional residential accommodation with two bedrooms and front-facing balconies.

- **Bedroom 1:** 10'-1" × 12'-9"
- **Bedroom 2:** 16'-6" × 11'-0"
- **Drawing Room:** 10'-11" × 12'-9"
- **Kitchen:** 6'-0" × 9'-0"
- **Living Area:** 10'-1" × 10'-11"
- **Store Room:** 10'-11" × 4'-9"
- **Toilet:** 4'-6" × 7'-10"
- **Additional WC:** Near the staircase
- **Passage:** 3'-9" wide
- **Front Balconies:** 3'-0" wide
- **OTS Ventilation:** Two open-to-sky shafts

The first-floor arrangement can support an extended family by providing separate bedrooms, a kitchen, a drawing room and everyday living spaces.

### Important Features of This 22x50 House Plan

**1. East Facing Residential Layout**

The house has its front access from the East side, with a 15-foot-wide road shown in the architectural drawing.

**2. Dedicated Car Parking**

A 10'-11" × 16'-11" porch provides space for parking a car, subject to the actual vehicle dimensions and gate clearance.

**3. Ground + First Floor Design**

The plan includes both ground-floor and first-floor layouts, making it suitable for families planning a G+1 residential house.

**4. Open-to-Sky Ventilation**

OTS shafts have been incorporated into the layout to support ventilation and natural light in internal areas, subject to site conditions.

**5. Centerline and Footing Drawings**

The downloadable package includes centerline and footing details to help coordinate the proposed building layout and foundation work.

**6. Practical Space Planning**

Separate drawing rooms, kitchens, bedrooms, living spaces and storage areas help organize daily activities.

### Drawings Included in the Download

- Ground Floor Architectural Plan
- First Floor Architectural Plan
- Centerline Layout
- Footing Detail Drawing

**Important Construction Note:** This plan is intended as a residential design reference. Foundation dimensions, reinforcement, structural safety, soil bearing capacity and compliance with local building regulations must be verified by a qualified structural engineer before construction.

### Download 22x50 House Plan PDF

Get the complete **22x50 East Facing G+1 House Plan PDF** from GharKaNaksha.com, including ground floor, first floor, centerline and footing drawings.

Before purchasing, verify the actual site dimensions, road direction and room requirements to ensure the design is suitable for your property.
